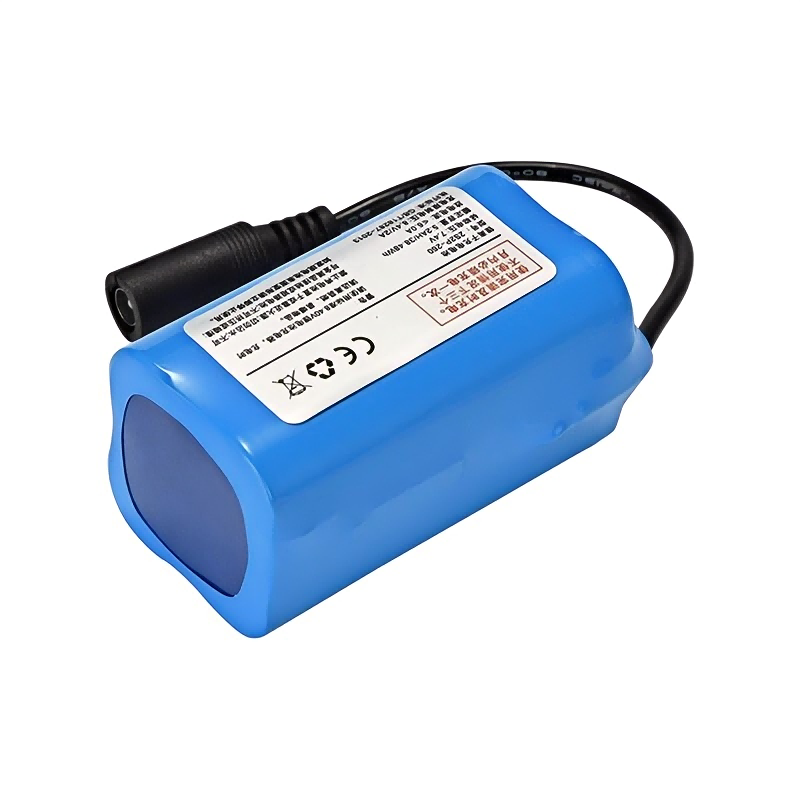

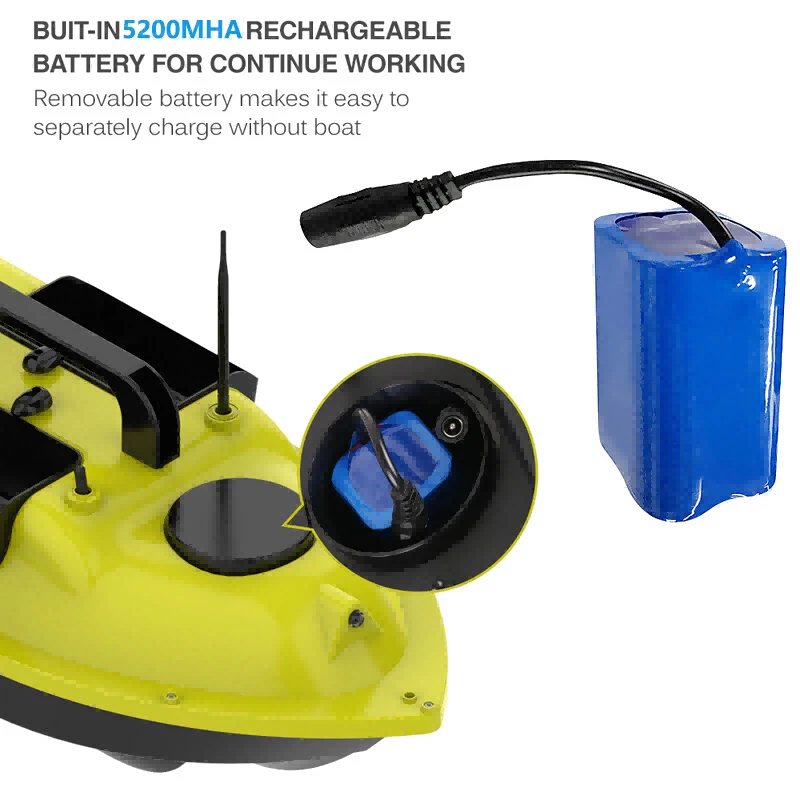

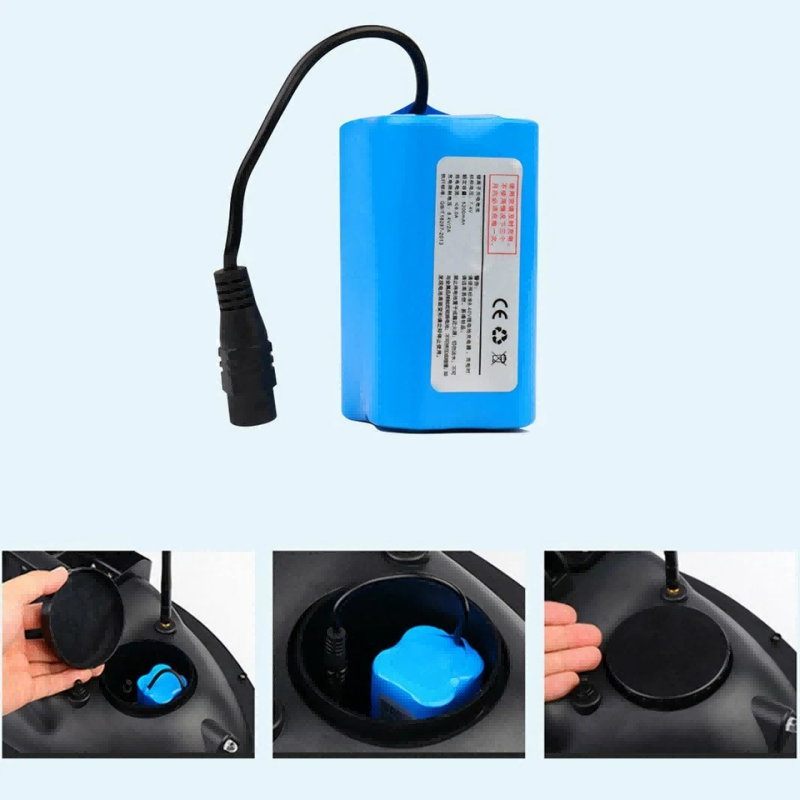

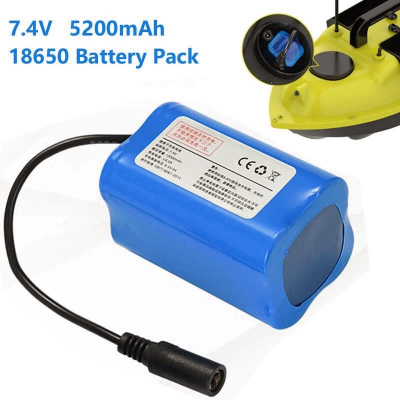

Lithium Ion Battery Pack 7.4V 12000/5200mAh Lithium Battery for Fishing Boat Rechargeable Bait Boat

Combination Method:2S2P , 2S4P or Custom Combination
Cell Capacity : 2600mAh or 3000mah or other
Rated Voltage:7.4V
Rated Capacity:5200mAh / 12000mAh
Charging Temperature Range:0°C ~ 40°C
Discharge Temperature Range :-20°C ~ 60°C
Storage Temperature Range:-20°C ~ 40°C
Cycle Life:500 times

7.4V 5.2Ah/12Ah  2S2P 2S4P or Custom Lithium Battery Pack – Product Specification

Parameter Details
Product Name 7.2V 5.2Ah/12Ah 2S2P 2S4P or custom Lithium Battery Pack
Combination Method 2S2P 2S4P or Custom Combination
Battery Model 18650
Optional Cell Capacity 2600mah 3000mah or other
Rated Voltage 7.4V
Rated Capacity 5200mah/12000mah
Max discharge current 5A or custom current
Internal Resistance 200~300mΩ
Max Peak dischargeCurrent 10A or custom current
Standard Discharge Current 0.2C
Fast Discharge Current 0.5C
Charging Temperature Range 0°C ~ 40°C
Discharge Temperature Range -20°C ~ 60°C
Storage Temperature Range -20°C ~ 40°C
Cycle Life 500 times
PCM & BMS Protection Functions Overcharge Protection, Over-discharge Protection, Short Circuit Protection,

Over Current Protection, Temperature Protection,

Charge Leveling, Battery Data Monitoring

Product Weight Customized
